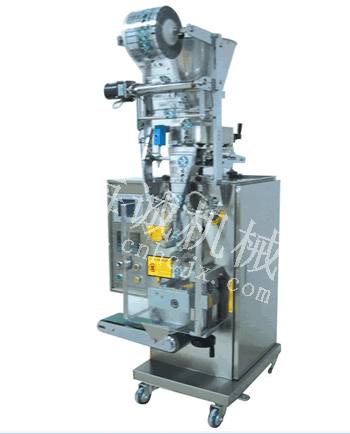

用途：Use
|
|
適用于醫藥、食品、植物種子、化工產品等有一定流動性、松散無粘性粉狀、顆粒狀物料的自動包裝，如：奶粉、面粉、沖劑、小丸、味精、白糖、湯料、麥片、干燥劑等。
|
|
Suitable for automatic packaging liquid, loose non-adhesive powder, particle materials like milk powder, flour, gourmet, sugar, soup, wheat and drying agents.
|
|
|
|
特點：Features
|
1.采用PLC可編程控制器，文本顯示屏操作，調整方便，自 動化程度高。
2.先進的光電數控制袋系統、下膜平穩準確，制袋長度能 在操作面直接設定。
3.光標對版，可獲得準確的商標圖案。
4.該機據不同物料可選配螺桿或量杯計量裝置。
|
PLC programmable controller, text display screen operating,
convenient adjustment, high automation.
Advance sensor digital-control bag making system, stable,
correct bottom film run, bag length can be directly set up at operating side.
Plate alignment by cursor, correct brand design can be achieved.
Metering screw stem or glass devices can be optional in this machine according to different materials.
|
|
|
|
主要技術參數 Main Technical parameter
|
|
|
|
包裝速度
|
Packing speed
|
30-60bags/min
|
|
制袋尺寸
|
Bag-making size
|
(L)50-120mm (W)40-80mm
|
|
計量范圍
|
Filling range
|
(1-20、20-50)ml
|
|
包裝膜寬
|
Flim width
|
100-220mm
|
|
制袋形式
|
Shape of bag-making
|
三邊封、四邊封
three-side sealing,four-sied sealing
|
|
電源功率
|
Power supply
|
AC380V、50Hz 900w
|
|
機器尺寸
|
Machine dimensions
|
(L)800×(W)700×(H)1500mm
|
|
整機重量
|
Machine weight
|
195kg
|
|
|
