RZ-2817
|
|
剪折機
|
|

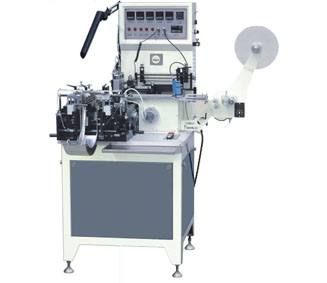

RZ2817 Cutting & Folding Machine
|
|
本機優點
|
|
1.RZ2817具有切疊，切折多功能機，是一種性能優良，工作效率高的切折疊機。
|
|
2.特有獨特的回拉系統剪折更精確，本機調試及工人操作時不用點動可用手動快速調整任意長度。
|
|
Features:
|
|
1.RZ-2817 model is easy to operate and has superb performance.It is designed especially for with soft labels and its smooth operate.
|
|
2.It has a special pulling system.As a result itcan precisely cut and fold.It can be inched with hand to adjust the length freely and fast while the worker is debugging and operating.
|
|
|
|
主要技術參數 Main Technical Variables
|
|
可切帶料
|
Cutting & folding materials
|
織帶,絲帶，織邊帶，膠帶
|
|
|
ribbon tape，silk tape，adhesive tape
|
|
切折種類
|
Cutting & folding variety
|
兩邊折，長短折，對折，信封折，凈切等，帶寬：10mm-70mm
|
|
|
end folding，short and long folding，center folding，envelop folding
|
|
兩邊對折
|
End fold
|
|
|
|
Center fold
|
最短（Shortest）25mm
|
|
|
最短（Shortest）25mm
|
|
信封折
|
Envelop fold
|
最短（Shortest）25mm
|
|
嘜折速度
|
Fold label speed
|
200只/分鐘（pcs/min）
|
|
|
|
|
切嘜速度
|
Cutting label speed
|
單切200只/分鐘（piece cut）200pcs/min
|
|
電源電壓
|
Power
|
AC：220V-240V 15A/50-60Hz
|
|
|
|
|
整機功率
|
Output
|
3Kw
|
|
整機重量
|
Weight
|
300Kg
|
|
|
|
|
外型尺寸
|
Dimension
|
1200*1380*1560mm（長*寬*高 L*W*H)
|
