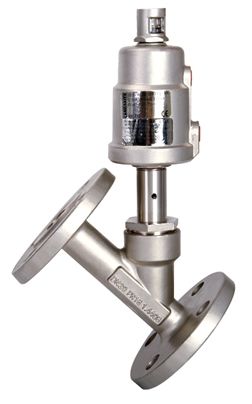

氣動法蘭角座閥
技術參數Technical data
◆壓力范圍Pressure range:0-16bar
◆介質溫度Medium temperature:-10℃～+180℃
◆環境溫度Environmental temperature:
    -10℃～+60℃
◆規格Specification:
  DN10-DN80,3/8＇-3＇
◆控制壓力：3-8bar
◆閥體材料Body material:不銹鋼Stainless steel，CF8/304,CF8M/316
◆密封材料Sealing material:
   聚四氟乙烯PTFE
◆執行機構外殼Actuator material:聚酰胺PA
◆介質Medium:中性氣體、空氣、水、蒸氣
    Neutral gas, air, water,Vapor
◆制造標準Manufacture standard:
   3A,ISO,DIN.IDF
◆特點：雙作用、單作用、防水錘

外部先進導角座閥，溢流口與滑塊間
有自調節密封壓蓋，閥體角座結構可
實現較大流量，特別是與普通截止閥
相比時。
External advanced Angle, especially
compare with the normal globe valves
seat valve, there is adjustment sealing
gland between over flow drain and
slider, body structure can enforce more
flow rate, especially compare with the
normal globe valves.

選取Option
◆控制功能Control functions：常開Normally open
◆PPS執行機構外殼適用于環境溫度：+5℃～+130℃
    PPS Actuator material suitable for environmental
    temperature: +5℃～+130℃
◆無復位彈簧雙作用執行機構
    No return springdouble acting actuators
◆快裝式連接
    Tri-clamp connection
◆電子式位置反饋
    Electronic position feedback
◆獨立可調行程極限，適于高低流量
    Independent adjustable stroke limit,
    suitable for high low flow schedule
◆手動應急開關
    Manual emergency switch
◆先導閥適用的Namur適配器
    Pilot valve suitable Namur adapter
